Introduction

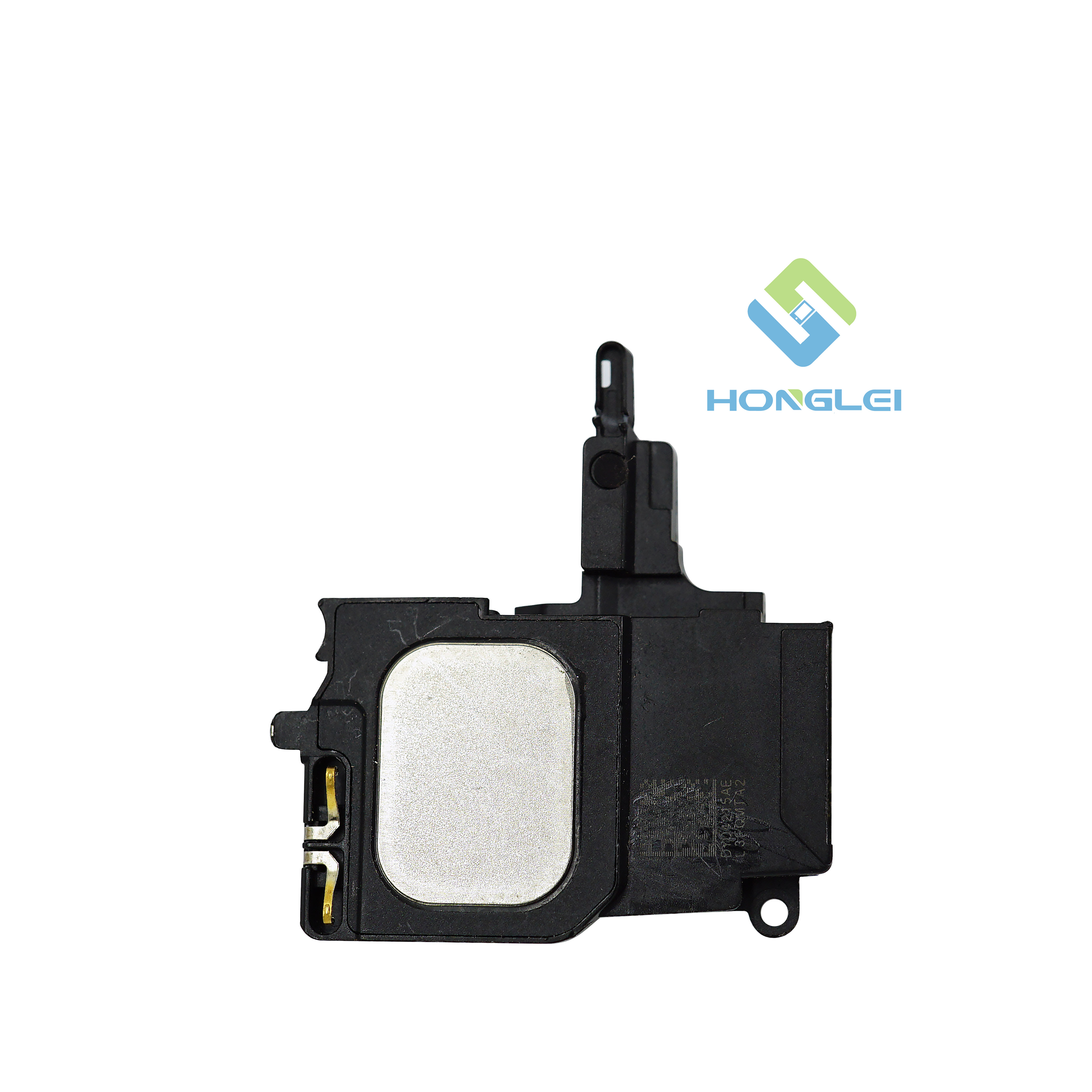

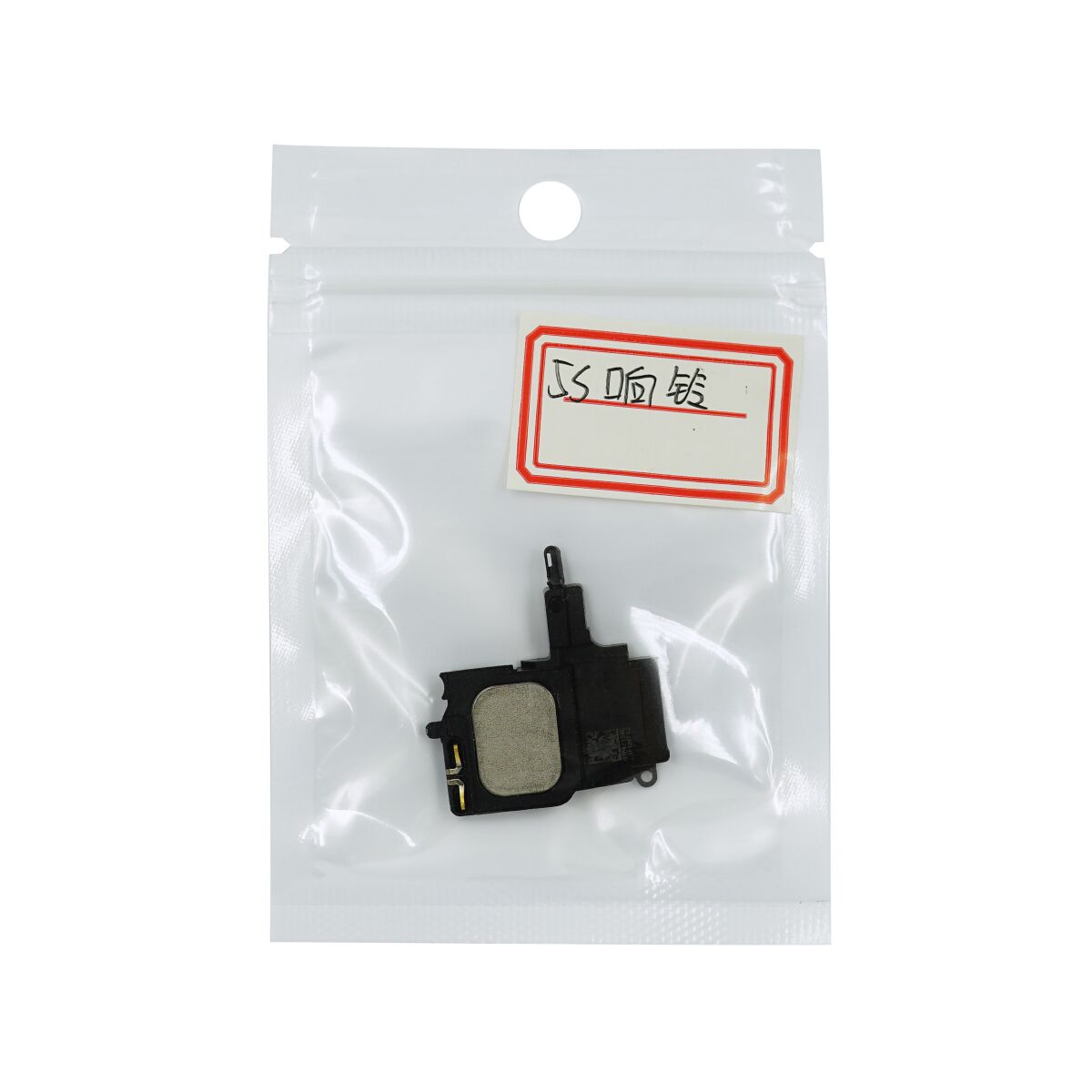

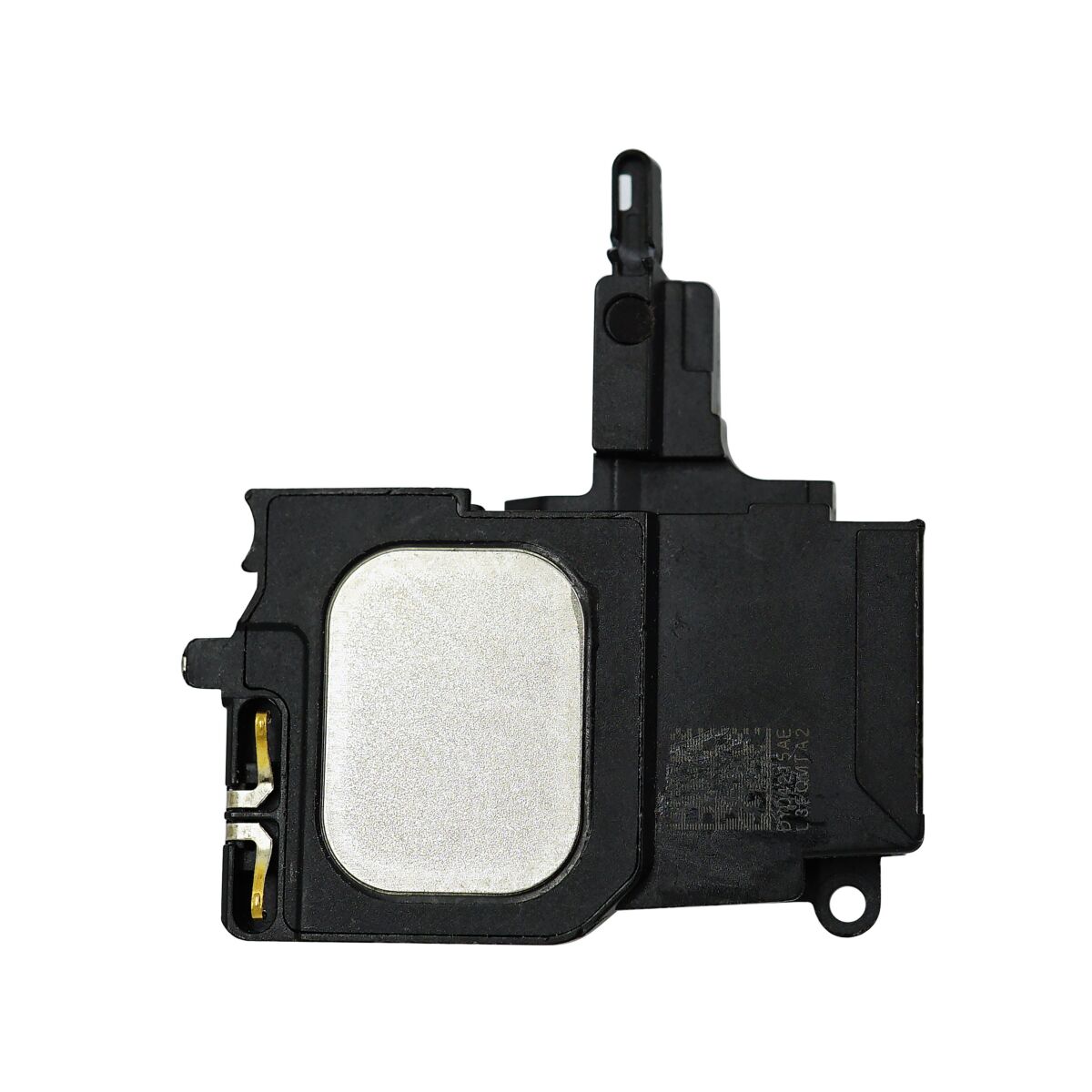

Bad speakerphone? No speakerphone audio? This may be the part you need!

• This part is for speakerphone and audio output.

• Sometimes a part can become clogged with dust or be damaged in a liquid spill.

• Use the tip of a spudger to pry the antenna cable up from its socket on the logic board.

• Remove the following Phillips #000 screws:

• One 2.9 mm screw

• One 1.5 mm screw

• One 3.6 mm screw

• Use the point of a spudger to gently pry between the speaker and the rear case, lifting the speaker enough to grab with your fingers.

• Do not attempt to pry the speaker entirely out of the case, you may break plastic tabs holding the speaker in place.

• Swivel the speaker downwards and toward the left of the phone to free the upper tab from underneath the logic board.

• Slide the speaker up and to the right to free the left-hand tab from under the home button cable connector.

• Remove the speaker from the iPhone.
