Product Overview

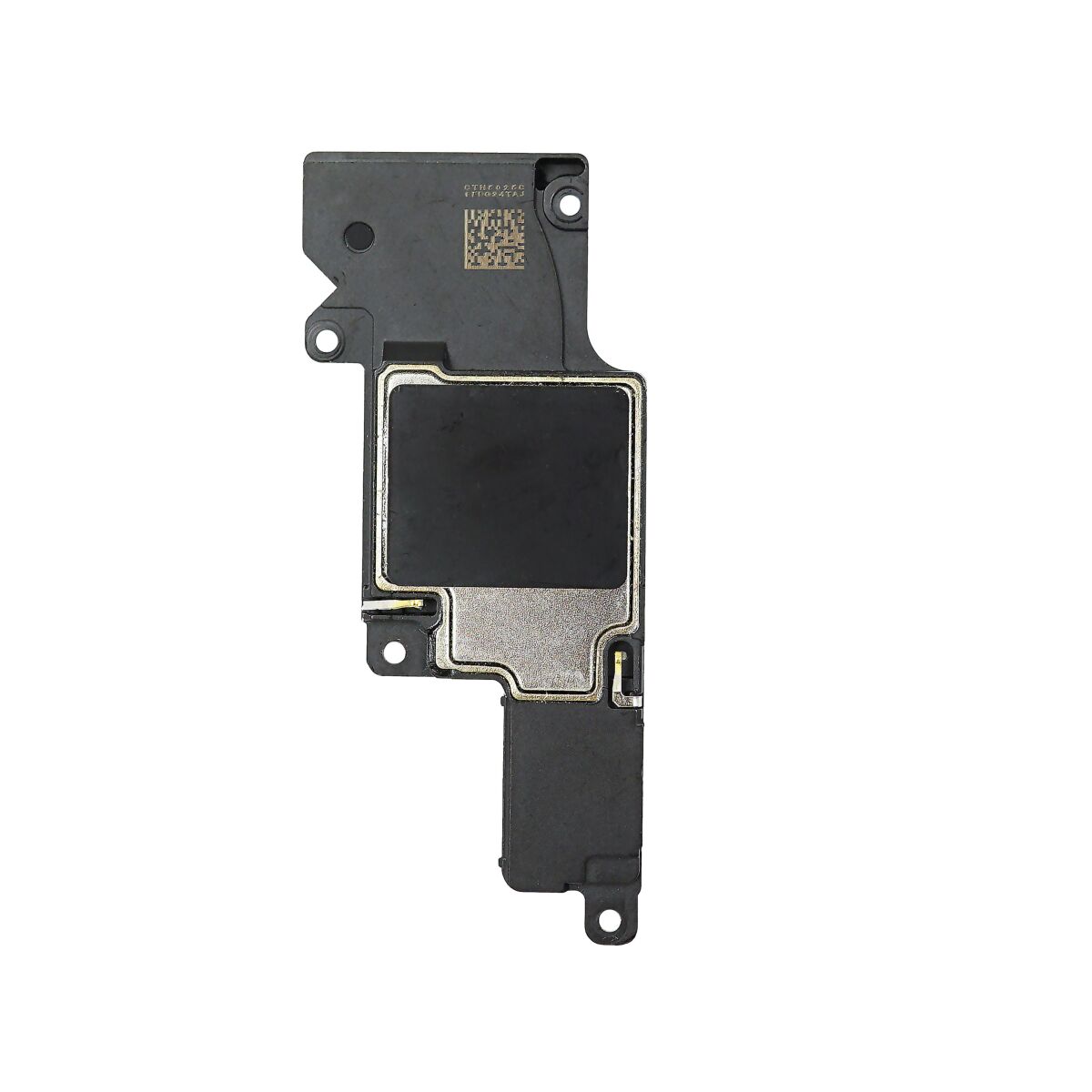

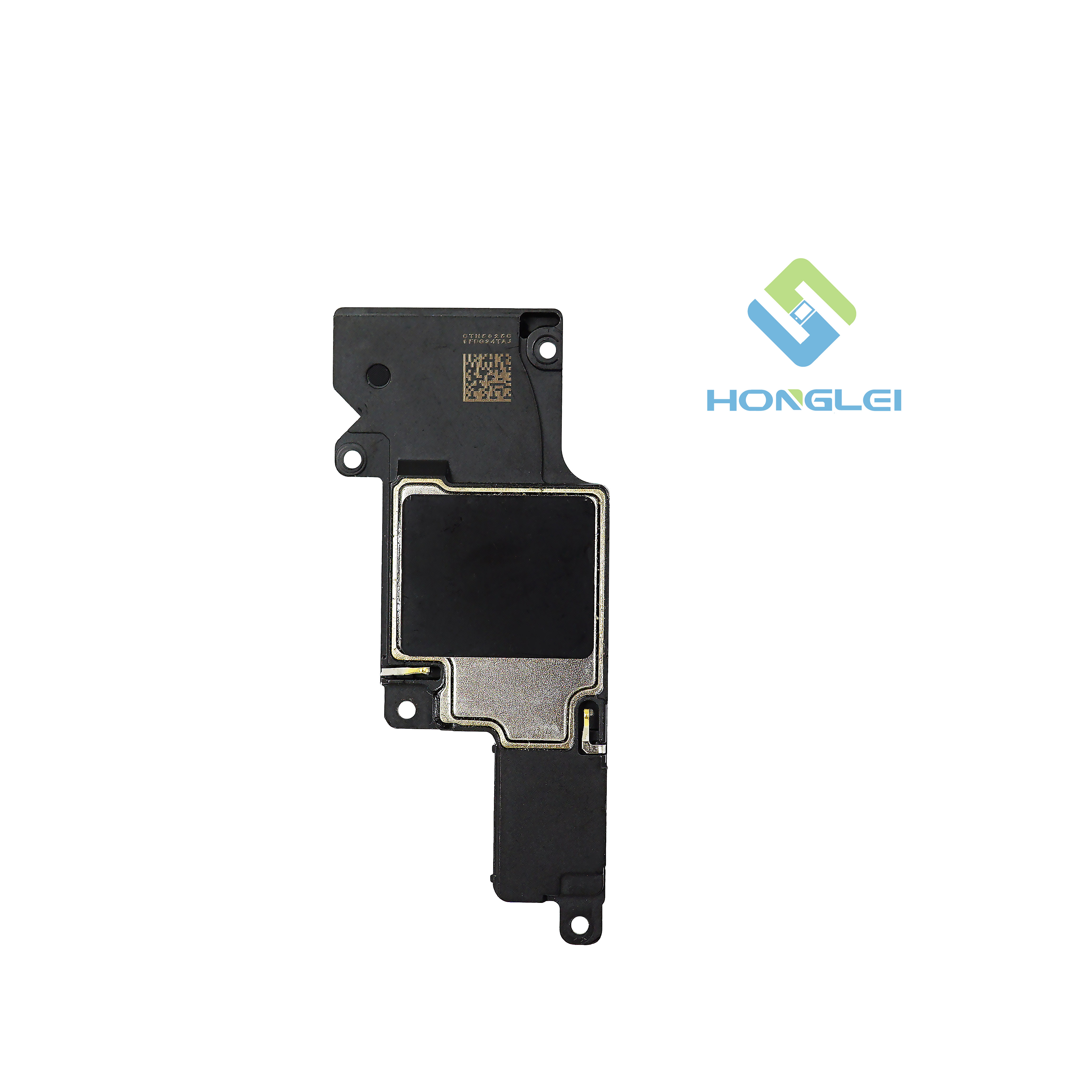

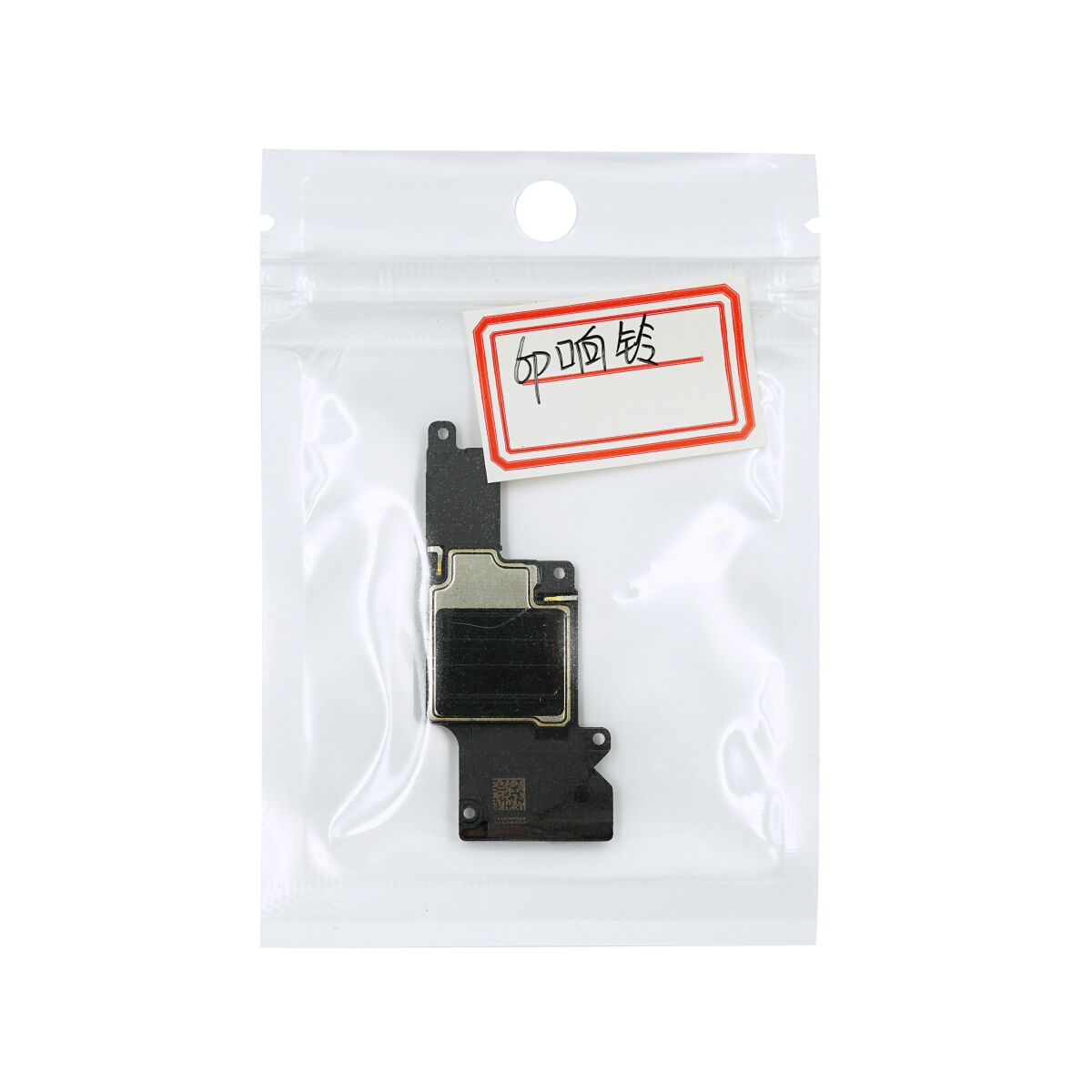

Bad speakerphone? No speakerphone audio? This may be the part you need!

• This part is for speakerphone and audio output.

• Sometimes a part can become clogged with dust or be damaged in a liquid spill.

• Pry the vibrator connector cable up from its socket on the logic board with the flat end of a spudger.

• Use the tip of a spudger to disconnect the interconnect antenna cable from its socket on the logic board.

• Grasp the interconnect antenna cable with a pair of tweezers and carefully de-route it from its channel on the vibrator assembly.

• Remove the two 2.5 mm Phillips #00 screws securing the vibrator to the rear case.

• Remove the vibrator from the iPhone.

• Grasp the antenna connector with a pair of tweezers and carefully begin de-routing it from its channel on the speaker.

• To fully de-route the antenna connector, you may need to gently pull back the metal clip securing it to the speaker assembly.

• Remove the following screws securing the speaker to the rear case:

• One 2.3 mm Phillips #00 screw

• One 2.8 mm Phillips #00 screw

• Lift and remove the speaker out of the iPhone.
