Product Overview

Fix your bad sensor cable!

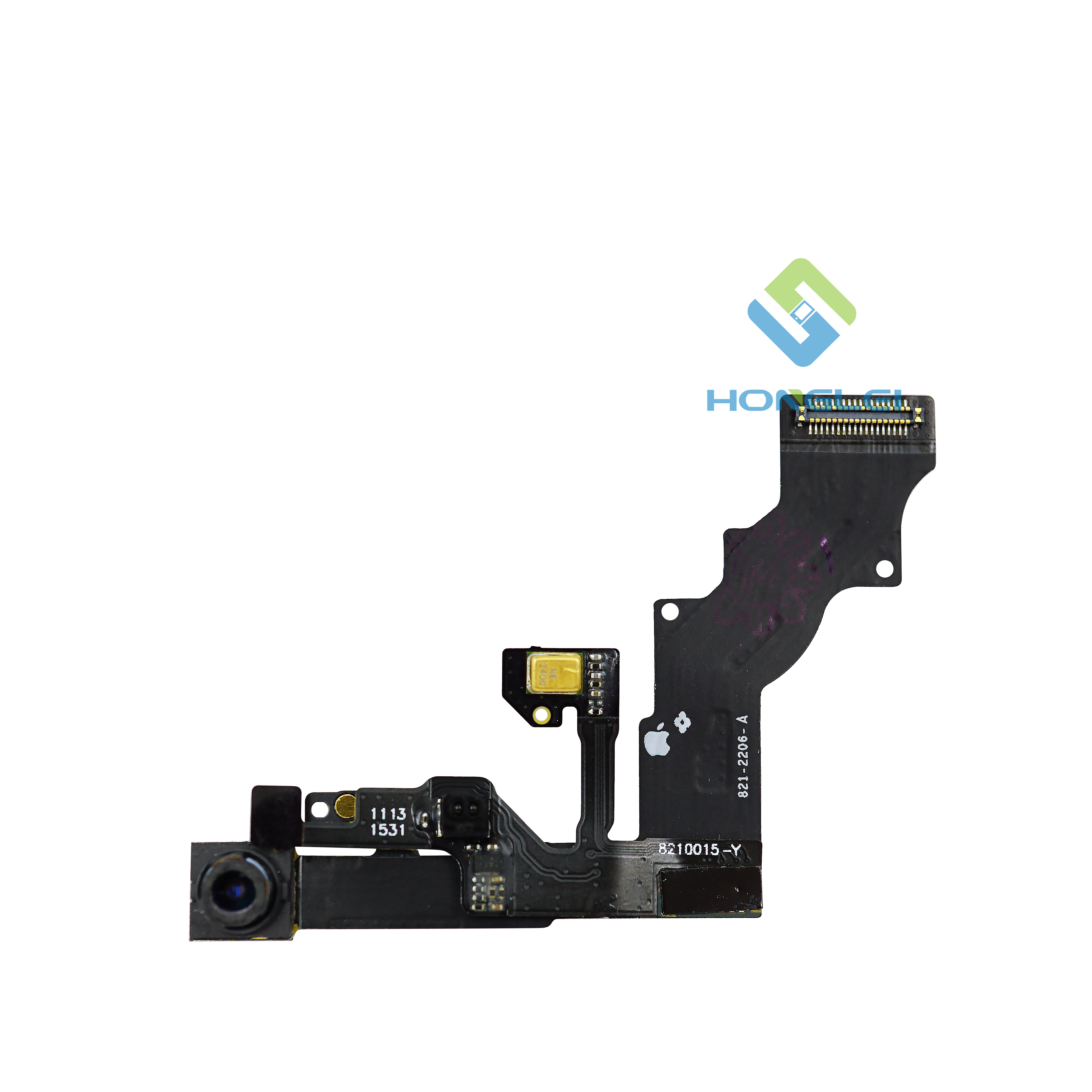

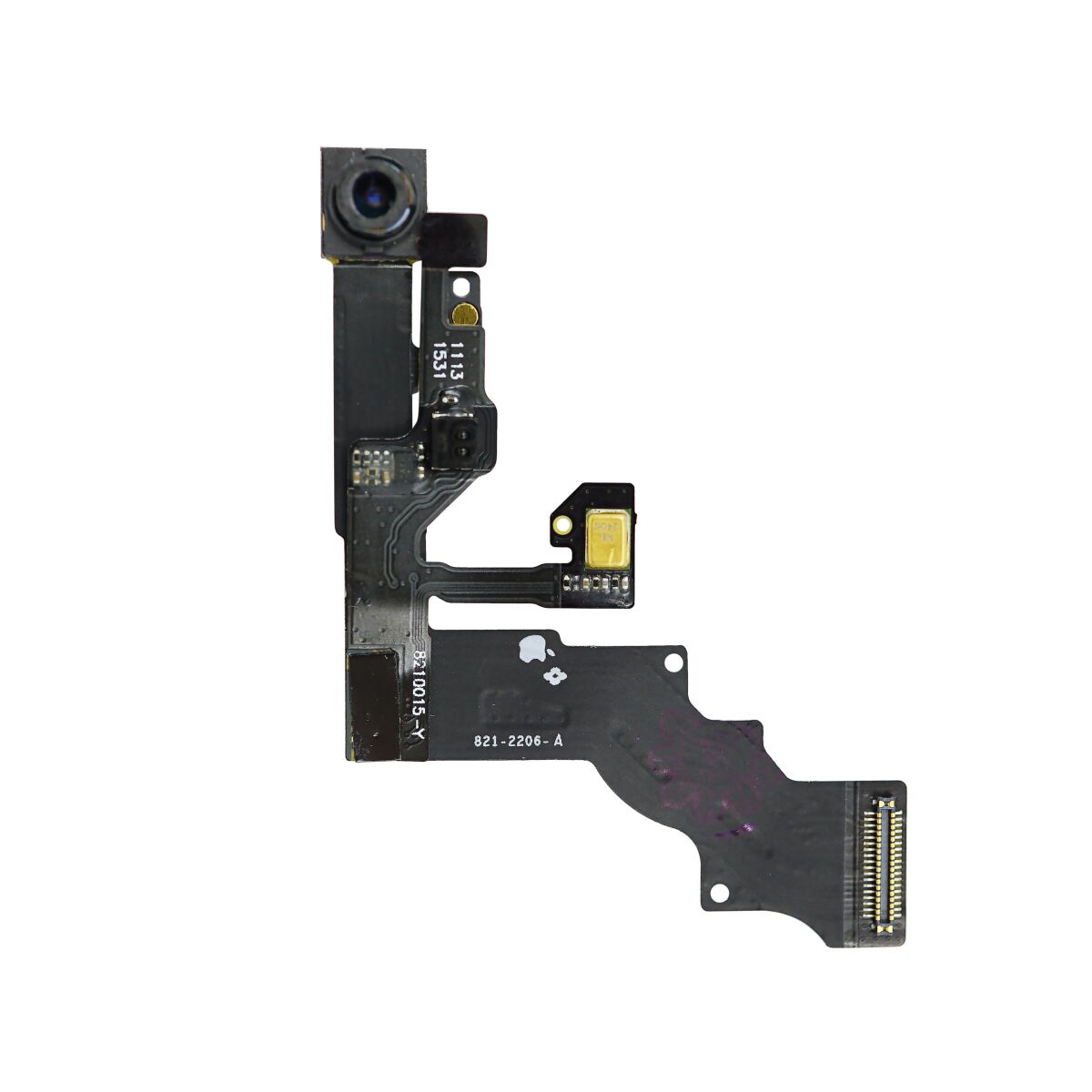

• Cable includes the front camera, secondary microphone, ambient light and proximity sensors.

• If you are having problems with noise canceling this may be the culprit.

• Remove the following Phillips screws securing the upper component bracket:

• One 1.5 mm screw

• Two 2.3 mm screws

• Lift and remove the earpiece bracket from the display assembly.

• Use a the flat end of a spudger to pry up the front-facing camera and display cables, and gently push them aside.

• Use a pair of tweezers to firmly grasp and remove the earpiece speaker from the display assembly.

• Use the tip of a spudger to gently pry up the sensor cable assembly from its recess in the display assembly.

• The cable is held in place with a mild adhesive.

• Pry the microphone portion of the front-facing camera and sensor cables from the display assembly.

• Remove the front-facing camera and sensor cable assembly off the display assembly.
