Product Overview

Fix those broken buttons!

• If your volume or power buttons have no clicking action or your mute switch doesn't work properly anymore, this may be the part you need.

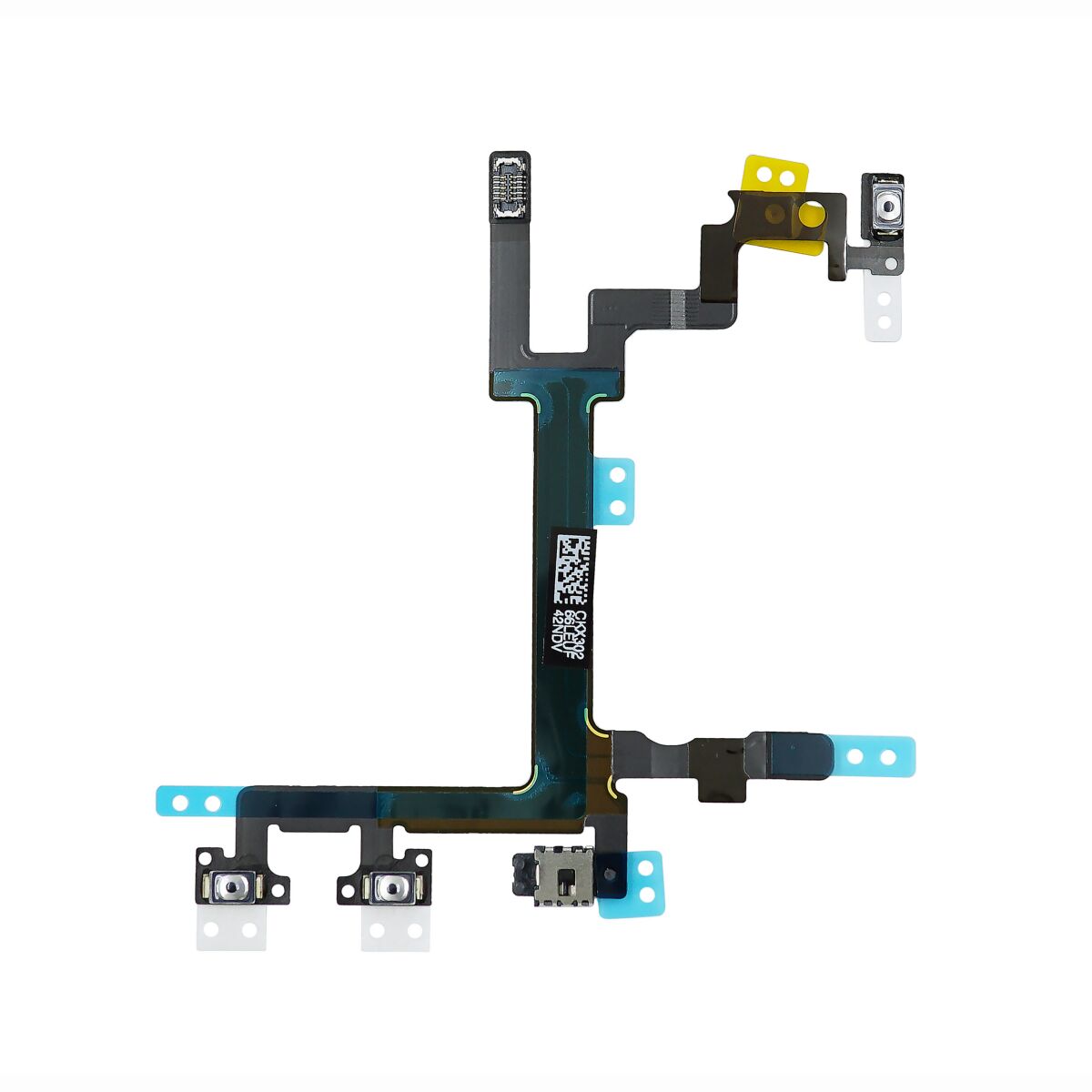

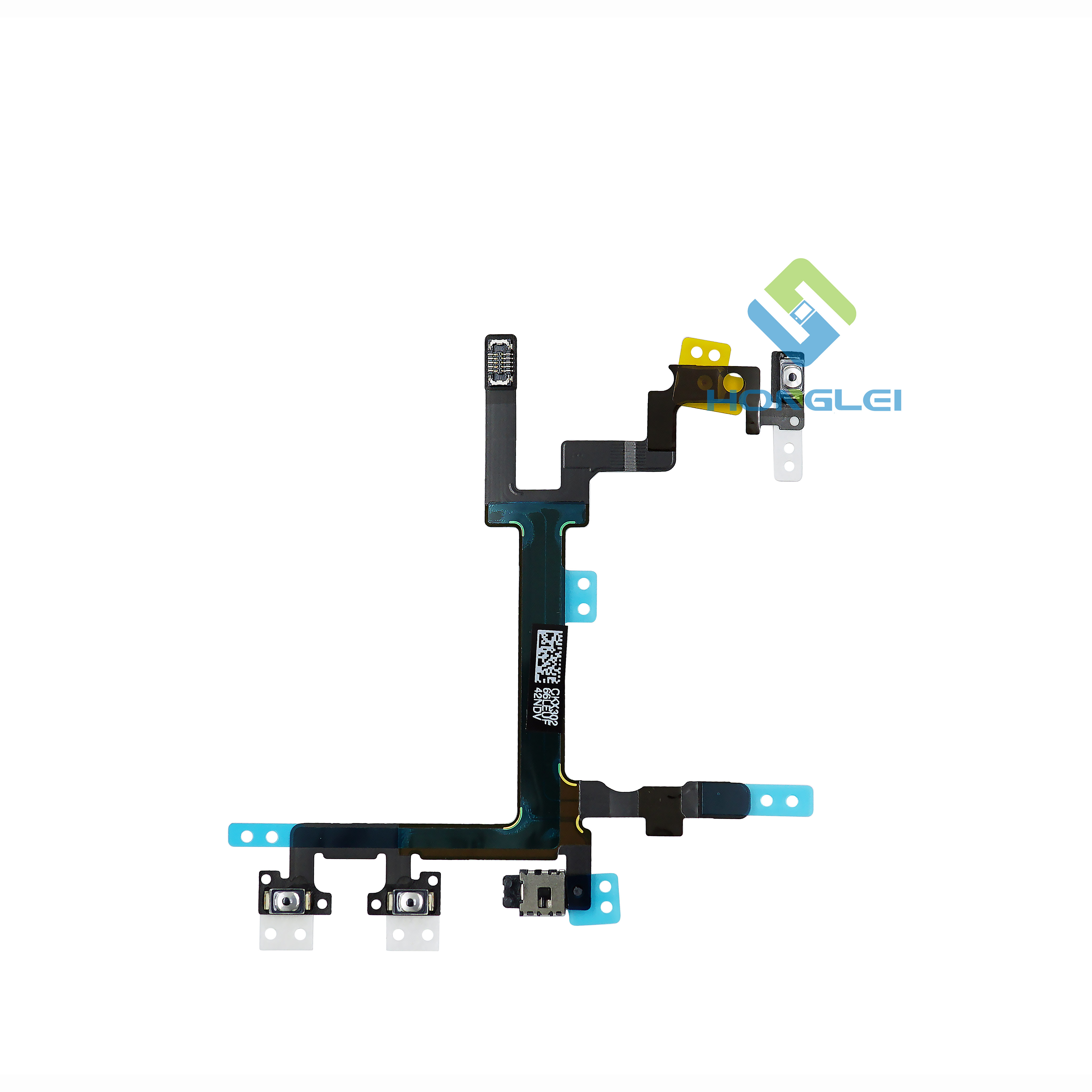

• This cable connects the volume buttons, mute/silent button, the power button, and the vibrate/ring switch to the logic board.

• It also has contacts which the vibrator rests on in order to connect it to the logic board.

• Each part comes with adhesive already applied for installing it into your phone.

• This part also contains an auxiliary microphone.

• Use the tip of a spudger to slide the power button bracket up and to the left to unhook it from the metal hinge.

• Use the flat edge of a spudger to pry the cable up from the adhesive securing it to the rear case.

• Continue prying the audio control cable up from the rear case.

• If your replacement part doesn't include the metal bracket, use a heat gun or hair dryer to soften the adhesive on the audio control cable and peel it off of the metal bracket with a spudger.
