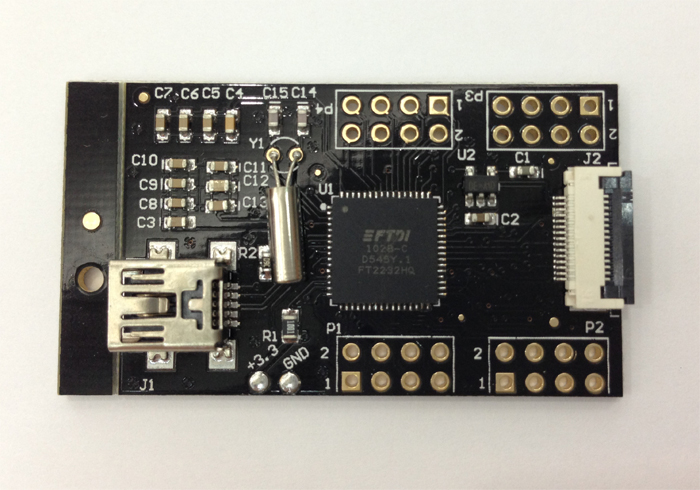

SQUIRT SLAVE PROGRAMMER is a generic X360 SPI NAND and JTAG programmer.

It works with any XILINX modchip (Squirt, Tx cool runner, Stinger…etc) and can also program the Xbox 360 NAND directly with the SPI interface.

The advantage to using it with the SQUIRT COOLRUNNER is the full integration with this RGH chip, with FCC 15 PIN cable connection you have a complete SOLDERLESS solution to program the SQUIRT and to read and write the NAND of your XBOX360. (of course wires need to be connected to SQUIRT COOLRUNNER)

Specifications:
1- FTDI MCU – USB 2.0 INTEGRATED
2- PROGRAMMING OF XILINX CPLD JTAG USB (Any coolrunner chip)
3- READ AND WRITE X360 NAND FLASH BY USB
4- 15 PIN ZIF CONNECTOR PLUG AND PLAY SQUIRT360 COOLRUNNER (full integration)
5- SMALL HARDWARE 3×2 CM
