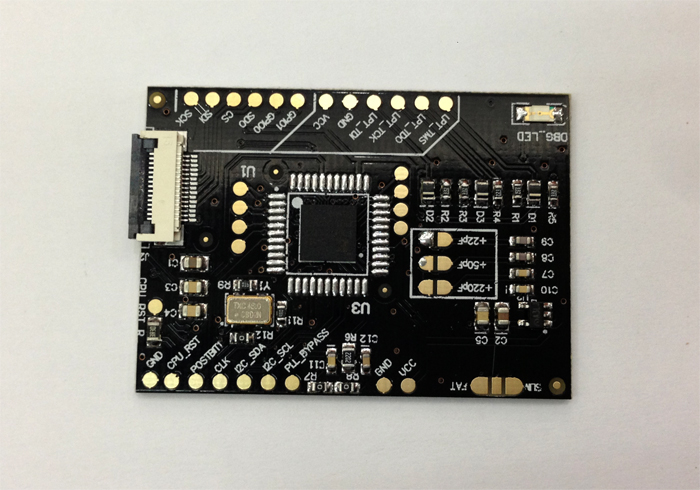

The SQUIRT 360 COOLRUNNER (only mainboard) :

- Main IC \"7VQG44C PLD COOLRUNNER XILINX\" compatible with all GLITCH sources
- On board capacitators: 220pF / 270pF / 292pF with easy jumpers
- LPT circuit on board, just connect LPT port and program, no need extra tools
- JTAG Xilinx port on the back for an easy update with any JTAG programmer
- SPI NAND pads connected to 40 cm FCC 15 PIN cable provided
- JTAG Xilinx port connected to 40 cm FCC 15 PIN cable provided
- 4 pads I/O connected to xilinx for future uses
- Plug and play JTAG & NAND programming with optional SQUIRT SLAVE PROGRAMMER
- 470pF & 680pF cap optional for fat consoles

Feautres：

• 100% compatible with free GLITCH HACK firmwares & Squirt coolrunner firmwares
• SPI NAND Flash programmer* (no need programmers like nandx, progskeet etc)
• Support of FAT and SLIM board
• Slim calibration on board (no need separate capacitators and diods)
• Stable Power Voltage Regulator
• Upgradable by PARALLEL port (on board circuit, just need a parallel cable and finish)
• Upgradable by USB*
• ZIF 15 pin connector on board ready to be connected to SLAVE MCU board*
• Flat cable 30 cm 15 pin included
• CHEAPER LIKE OTHER standard coolrunner products in the market
